Custom and Curved Stair Railing Types in Tallahassee
Custom railing work falls into three jobs. Two follow a curved stair, and the third is a design no catalog sells. Each starts with measuring the stair as built, because no two curves come out the same.
Curved and Helical Stair Railings
A curved stair needs a rail that climbs and turns at once. In wood, the common method is bending rail: a standard handrail profile ripped into thin strips that interlock, glued and clamped to forms set on the stair itself until they set into one curved rail. The tighter the radius, the more strips it takes so the wood bends without cracking. Curved iron is custom shop work, and cost guides put it at the top of the wrought iron range.
- 5-foot radius: a 2-1/4-inch rail made of six laminations in one Fine Homebuilding example
- Down to a 30-inch radius: seven laminations
- Job cost: $8,000 to $20,000 for arched or curved stair work in Bob Vila's table
Spiral Staircase Railings

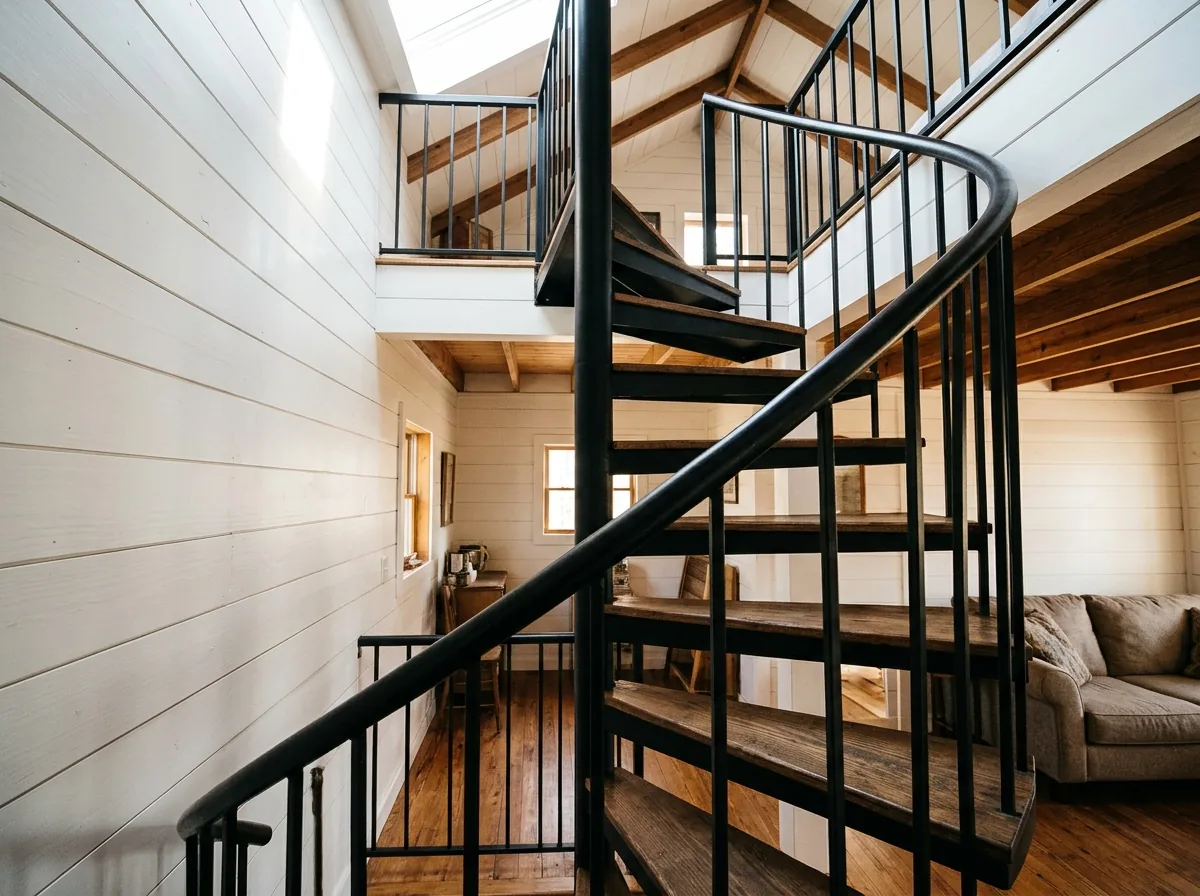

A spiral stair turns in a tight circle, so its rail is a continuous helix along the outer edge. The code treats spiral stairs as a special case with its own dimensions, and a replacement rail can't eat into the clear width the stair was built with. For scale, HomeAdvisor puts a complete new spiral staircase at about $10,400 on average, stair and all.
- Clear width at and below the handrail: at least 26 inches
- Tread depth: at least 6-3/4 inches at the walkline, with every tread identical
- Rise: no more than 9-1/2 inches; headroom at least 6 feet 6 inches
- Typical rail job: $3,110 to $4,230 for spiral or helical work in Bob Vila's table
Custom-Fabricated Metal Railing Designs

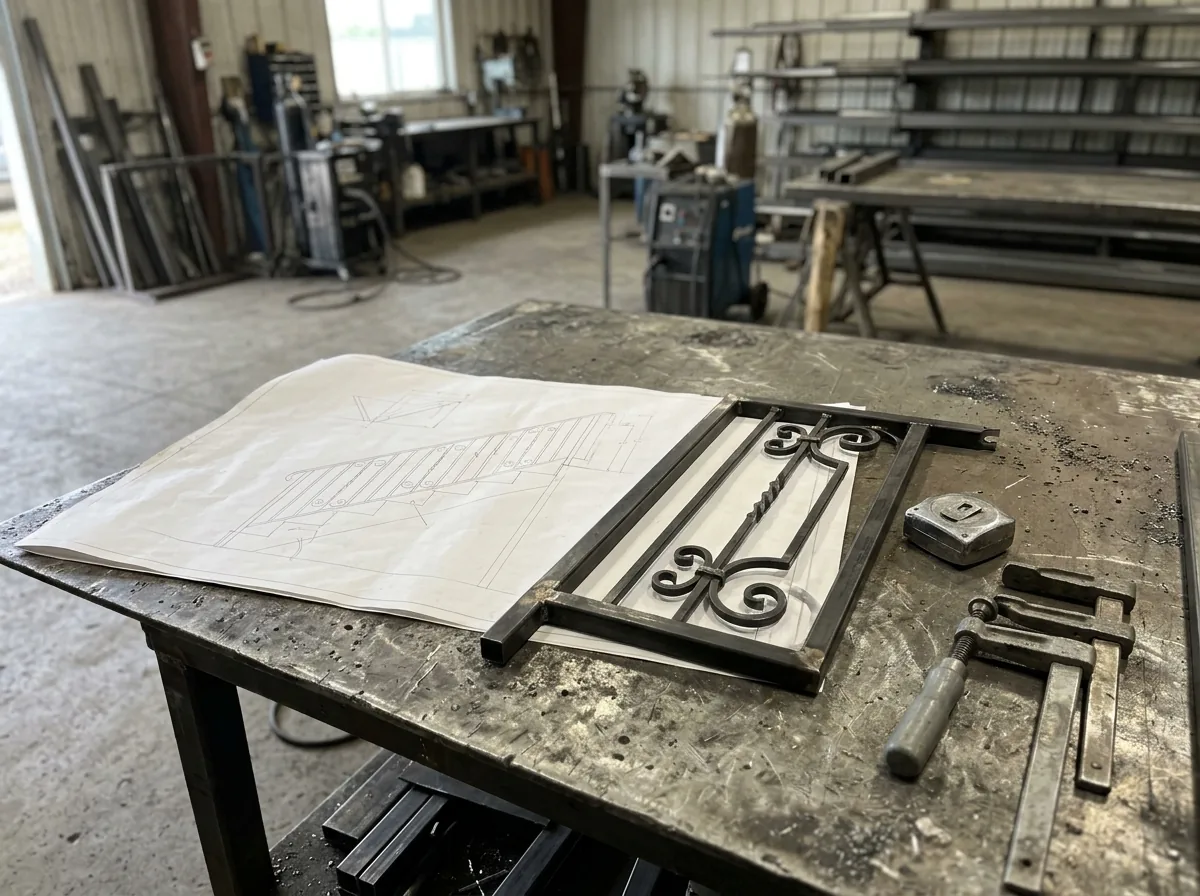

This is the one-off job: a scroll pattern copied from an old house, a panel design you drew yourself, a rail that matches a gate. The drawing is the contract. One railing supplier sends a scaled layout drawing with every order and fabricates nothing until the customer approves it with the final quote. Ask for the same: a drawing that shows post positions, the baluster or panel pattern, the rail profile and the finish. For a factory-built system's lead time, see modern stair railing.
- Drawing first: dimensions, placement and design confirmed before fabrication
- Measurements: final site measurements taken or confirmed before the drawing is locked
Why Tallahassee homeowners call Tallahassee Stair Railing
- Free for homeowners: the installer quotes you directly
- Your request goes to one railing installer, not a call list
- Ask for the rail height, baluster gap and material in writing
- Ask for a written quote before paying any deposit
Curved Stair Railing Cost and What Drives It
National guides agree that curves, bends and spirals push a railing into custom work, and custom work costs more than a straight run. Bob Vila's table puts a straight stair at $1,900 to $5,000, while curved or arched work starts at $8,000 and runs to $20,000. Spiral and helical jobs land at $3,110 to $4,230.
Radius
a tighter curve needs more laminations in wood or more bending work in metalFittings
a volute or turnout at the bottom tread, and easings where the rail changes pitchMaterial
wood bending rail, iron or steel; curved iron sits at the top of the iron per-foot rangeFinish
paint, stain or powder coat, and who applies it
Code Points for Custom and Curved Railings
Curved rails rely on fittings, and the code makes room for them. The 2023 Florida Building Code, Residential, allows a volute, turnout or starting easing over the lowest tread. Where fittings or bendings carry the rail between flights, around winders or from handrail to guard, the rail may rise above 38 inches at that fitting. The normal height and grip rules apply along the rest of the rail (handrail rules), and the baluster gaps still follow the stair-side sphere rule.
Ask whether your job needs a permit before the drawing is final; a custom job can cross the city's dollar threshold (permits).
